Professional AT070TN94 7.0 Innolux LCD Panel , hd industrial lcd monitor 500 / 1 Contrast Ratio

Brand Name : Innolux LCD Panel

Model Number : AT070TN94

Certification : ISO9001

Place of Origin : Japan,Korea

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Input Voltage : 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Signal Interface : Parallel RGB (1 ch, 6/8-bit) , 50 pins

Lamp Type : 3S9P WLED

Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)

Panel Brand : INNOLUX

Panel Model : AT070TN94

Panel Type : a-Si TFT-LCD , Panel

Panel Size : 7.0 inch

Contact Now

Professional AT070TN94 7.0 Innolux LCD Panel , hd industrial lcd monitor 500 / 1 Contrast Ratio

INNOLUX AT070TN94 General Features

Panel Brand : INNOLUX
Panel Model : AT070TN94
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 154.08×85.92 mm
Outline : 164.9×100×6 mm
Surface : Antiglare
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Dithering) , CIE1931 50%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 3S9P WLED [8S6P: 8 Serial, 6 Parallel] Without Driver
Signal Interface : Parallel RGB (1 ch, 6/8-bit) , 50 pins
Input Voltage : 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)


Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.

INNOLUX AT070TN94 Mechanical Features

Panel Size : 7.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 134 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0642×0.1790 mm (H×V)
Pixel Pitch : 0.1926×0.1790 mm (H×V)
Weight : 150g (Typ.)
Surface : Antiglare
Active Area : 154.08×85.92 mm (H×V)
Bezel Area : 156.7×89.1 mm (H×V)
Outline Dimension : 164.9×100 mm (H×V)
Outline Depth : 5.7±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without


Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
V156B2-P02 Innolux 15.6" 1366×768
N154I2-P05 Innolux 15.4" 1280×800
C03024-01Z Innolux 3.0" 960×480(dot)
G121IJ1-P01 Innolux 12.1" 1280×800
F04307-06Z Innolux 4.3" 480×800
CG043JN16 Innolux 4.3" 480×800
F04008-01U Innolux 4.0" 480×800

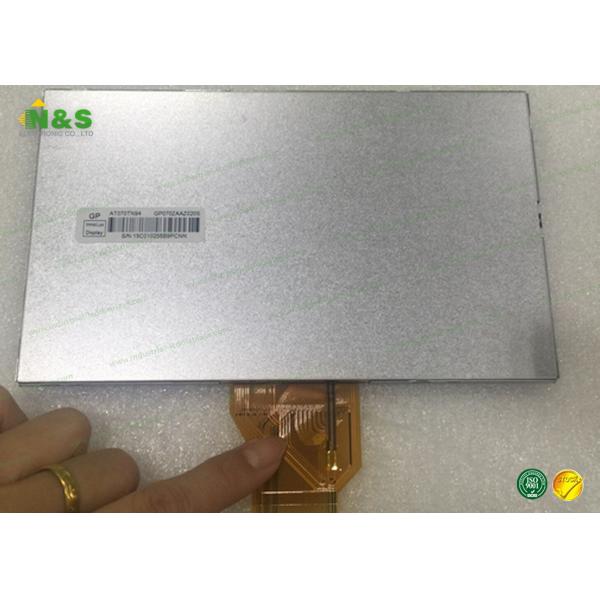

Details Pictures for Innolux LCD Panel AT070TN94
