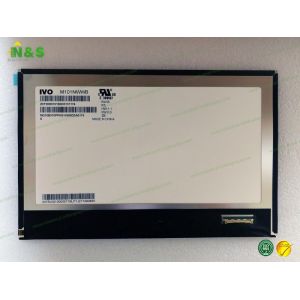

New and original M101NWWB R3 10.1 inch, 1280×800 TFT LCD MODULE Surface Glare (Haze 0%), Hard coating (3H)
M101NWWB R3 Basic Information
| Panel Model |
M101NWWB R3 |
| Panel Brand |
IVO |
| Descrition |
a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
- AUO LCD Screen
- Samsung LCD Display
- LG LCD Screen replacements
- Sharp LCD panels &Chimei LCD Parts.
- Innolux LCD Modules & BOE LCD Screen.
M101NWWB R3 Mechanical Features
| Dot Resolution |
1280(RGB)×800 (WXGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
149 PPI |
| Aspect Ratio |
16:10 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.0565×0.1695 mm (H×V) |
| Pixel Pitch |
0.1695×0.1695 mm (H×V) |
| Weight |
160g (Max.) |
| Surface |
Glare (Haze 0%), Hard coating (3H) |
| Active Area |
216.96×135.6 mm (H×V) |
| Outline Dimension |
229.46×149.1 mm (H×V) |
| Outline Depth |
2.5/4.56 (Typ./Max.) mm |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
M101NWWB R3 Optical Features
| Display Mode |
IPS, Normally Black, Transmissive |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
800 : 1 (Typ.) (Transmissive) |
| Display Color |
16.7M (8-bit) |
| Color Gamut |
45% NTSC (CIE1931) |
| Response Time |
25 (Typ.)(Tr+Td) |
| Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
Symmetry |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.33/1.43 (Typ./Max.)(13 points) |
| Sunlight Readable |
N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Below are our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| C023SN21-0 |
IVO |
2.3" |
240×320 |
| C039SWP4-0 |
IVO |
4.0" |
480×800 |
| C039SWN1-1 |
IVO |
4.0" |
320×480 |
| F101NWN7-0 |
IVO |
10.1" |
1920×1200 |
| C043GW32 R1 |
IVO |
4.3" |
480×272 |
| C045SWY1-4 |
IVO |
4.5" |
480×854 |
| C050SWY7-1 |
IVO |
5.0" |
480×854 |
| C050SWY7-0 |
IVO |
5.0" |
480×854 |
| C022SN91-0 |
IVO |
2.2" |
176×220 |
| F054SWN1-1 |
IVO |
5.4" |
540×960 |
| C060SWZ1-1 |
IVO |
6.0" |
540×960 |
| C050SWZ3-0 |
IVO |
5.0" |
540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
