21.5 Inch M215HGE-L10 Innolux LCD Panel Landscape type with 476.64×268.11 mm

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

21.5 Inch M215HGE-L10 Innolux LCD Panel Landscape type with 476.64×268.11 mm

Brand Name : Innolux

Model Number : M215HGE-L10

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram,

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Supply Ability : 500PCS/DAY

Panel Brand : CHIMEI INNOLUX

Response Time : 1.5/3.5 (Typ.)(Tr/Td)

Contrast Ratio : 1000:1 (Typ.)

Display Mode : TN, Normally White, Transmissiv

Active Area : 476.64×268.11 mm

Brightness : 250 cd/m² (Typ.)

Display Colors : 16.7M (8-bit) , CIE1931 72%

Surface : Antiglare (Haze 25%), Hard coating (3H)

Contact Now

21.5 Inch M215HGE-L10 Innolux LCD Panel Landscape type with 476.64×268.11 mm

M215HGE-L10 Innolux LCD Panel Specification

Panel Brand : CHIMEI INNOLUX
Panel Model : M215HGE-L10
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 21.5 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : TN, Normally White, Transmissive
Active Area : 476.64×268.11 mm
Outline : 495.6×292.2×12 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 strings WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

Panel Size : 21.5 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 102 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.08275×0.24825 mm (H×V)
Pixel Pitch : 0.24825×0.24825 mm (H×V)
Weight : 2.04/2.12Kgs (Typ./Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 476.64×268.11 mm (H×V)
Bezel Area : 479.8×271.3 mm (H×V)
Outline Dimension : 495.6×292.2 mm (H×V)
Outline Depth : 11.5/12.0 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

BRAND P/N size quantity
Innolux G057VGE-T01 5.7" 852
Innolux G070Y2-T02 7.0" 2320
Innolux G070Y3-T01 7.0" 1580
Innolux G104S1-L01 10.4" 850
Innolux G141C1-L01 14.1" 450
Innolux R190E6-L01 19.0" 150
Innolux R196U2-L03 19.6" 450
Innolux G260JJE-L07 25.5" 100
Innolux AT056TN52 V.5 5.6" 1200
INNOLUX LW700AT6005 7.0" 2000
innolux HJ080IA-01E 8" 450

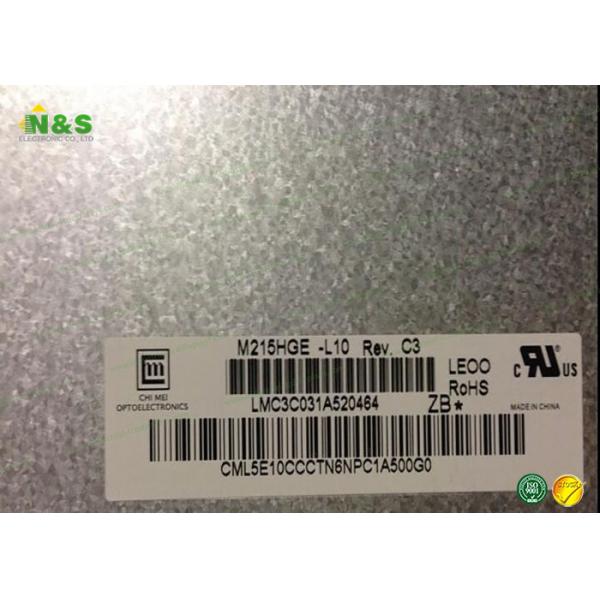

M215HGE-L10 Innolux LCD Panel Picture

21.5 Inch M215HGE-L10 Innolux LCD Panel Landscape type with 476.64×268.11 mm
