TS104SAALC01-00 TIANMA 10.4 inch Normally White for Industrial Application
Products Information:
| Panel Size : | 10.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 288g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.0×162.0 mm (H×V) |
| Outline Dimension : | 236×176.9 mm (H×V) |
| Outline Depth : | 5.6±0.3 mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
<
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 230 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 10 (Typ.)(TTr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.311; Wy:0.330 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
- ISO9001 certificated, Factory Direct Supplied
- Competitive Price and Short Lead-time
- Professional Team with Rich Experiences in LCD screen international trade communication.
- Small MOQ Support & Fast Response to Customers
- Long Product Life Time
- 1 Year warranty for our LCD screen replacements.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |
| TM055JYSP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP03 | Tianma | 5.5" | 720×1280 |

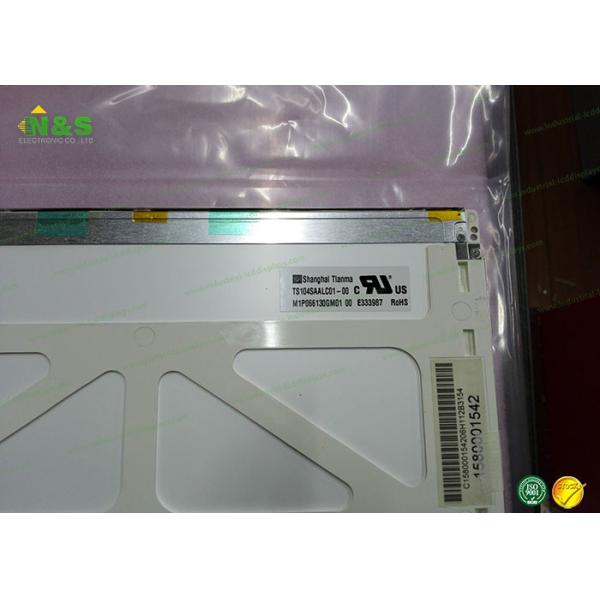

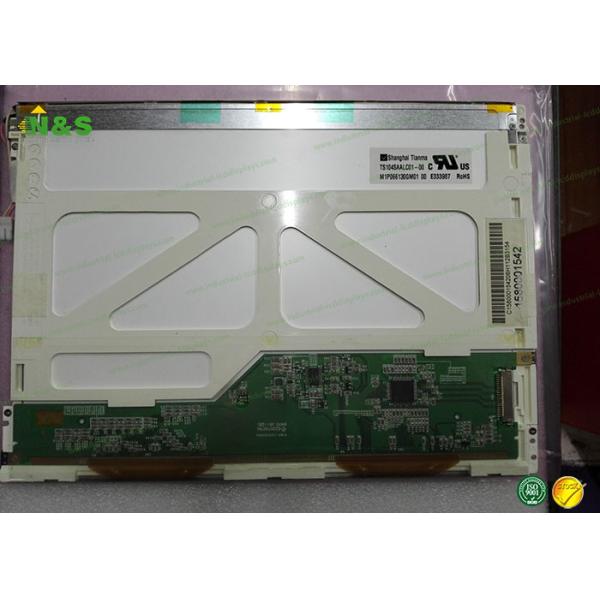

TS104SAALC01-00 Picture
Product Tags:
|
|
TS104SAALC01-00 TIANMA industrial lcd screen 10.4 inch Normally White Images
|
