N080JCE-G41 Innolux LCD Panel 8.0 inch with 107.64×172.22 mm

Name: N080JCEG41 Innolux LCD Panel 80 inch with 1076417222 mm
Brand: Innolux
Price: 1 USD

Brand Name : Innolux

Model Number : N080JCE-G41

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 500PCS/DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 8.0 inch

Resolution : 1200(RGB)×1920 , WUXGA

Contrast Ratio : 900:1 (Typ.)

Signal Interface : MIPI (4 data lanes) , 45 pins

Contact Now

N080JCE-G41 Innolux LCD Panel 8.0 inch with 107.64×172.22 mm

Products Information:

Panel Size :

8.0 inch

Dot Resolution :

1200(RGB)×1920 (WUXGA)

Pixel Configuration :

RGB Vertical Stripe

Pixel Density :

283 PPI

Aspect Ratio :

10:16 (H:V)

Form Factor :

Flat Rectangle Display

Dot Pitch :

0.0299×0.0897 mm (H×V)

Pixel Pitch :

0.0897×0.0897 mm (H×V)

Weight :

80g (Max.)

Surface :

Glare (Haze 0%), Hard coating (3H)

Active Area :

107.64×172.22 mm (H×V)

Outline Dimension :

114.6×184.1 mm (H×V)

Outline Depth :

2.15/3.65 (Typ./Max.) mm

Holes & Brackets :

Without

Landscape or Portrait :

Portrait type

Display Mode :

AAS, Normally Black, Transmissive

Brightness :

400 cd/m² (Typ.)

Contrast Ratio :

900 : 1 (Typ.) (Transmissive)

Display Color :

16.7M (8-bit)

Color Gamut :

60% NTSC (CIE1931)

Response Time :

25 (Typ.)(Tr+Td)

Viewing Angle :

89/89/89/89 (Min.)(CR≥10) (L/R/U/D)

Viewing Direction :

Symmetry

White color Chromaticity :

Wx:0.300; Wy:0.320

White Variation :

1.25/1.50 (Max.)(5/13 points)

Sunlight Readable :

FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.

Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model	Brand	Size	Resolution
AE060RN01	Innolux	6.0"	800×600
F050A12-601	Innolux	5.0"	480×854
85C02502-Y21	Innolux	2.5"	320×240
V260B2-P03 Rev.C2	Innolux	26.0"	1366×768
G070YG1-P01	Innolux	7.0"	800×480
F03215-01Z	Innolux	3.2"	360×480

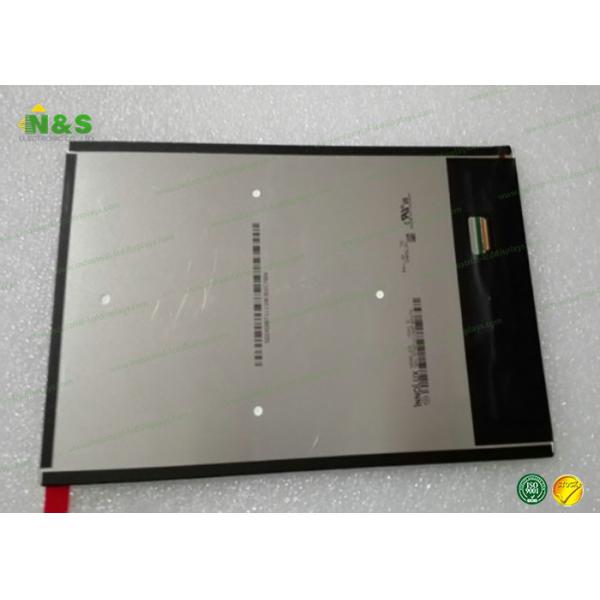

N080JCE-G41 Picture
