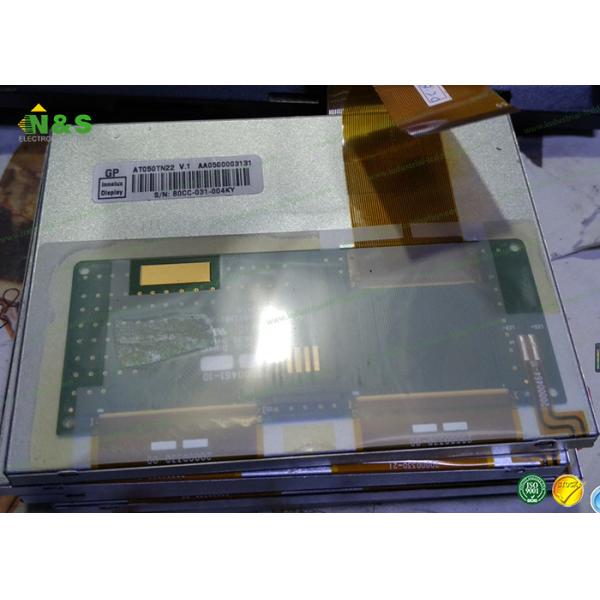

AT050TN22 Normally White LCM 5 inch lcd screen 640×480 101.568×76.176 mm Active Area

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

AT050TN22 Normally White LCM 5 inch lcd screen 640×480 101.568×76.176 mm Active Area

Brand Name : Innolux

Model Number : AT050TN22

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 5.0 inch

Resolution : 640(RGB)×480 , VGA

Display Mode : TN, Normally White, Transmissive

Active Area : 101.568×76.176 mm

Outline : 117.65×88.43×6 mm

Contact Now

AT050TN22 Innolux LCD Panel 5.0 inch Normally White LCM 640×480 101.568×76.176 mm Active Area

AT050TN22 Information

Panel Size : 5.0 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 160 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0529×0.1587 mm (H×V)
Pixel Pitch : 0.1587×0.1587 mm (H×V)
Weight : 75g (Typ.)
Surface : Antiglare
Active Area : 101.568×76.176 mm (H×V)
Bezel Area : 104.60×79.20 mm (H×V)
Outline Dimension : 117.65×88.43 mm (H×V)
Outline Depth : 5.7±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable : N

Our Advantage

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M238HCJ-P02 Innolux 23.8" 1920×1080
ME270NA-01A Innolux 27.0" 1920×1080
N156BGE-PB1 Innolux 15.6" 1366×768
PP050IC-01F Innolux 5.0" 720×1280
P060DDZ-ZZ1 Innolux 6.0" 800×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
