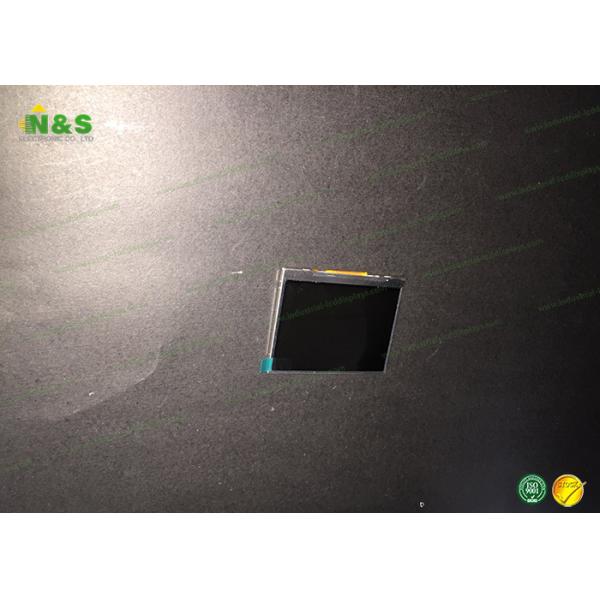

L5F30515P00 TFT LCD Module Epson 2.0" LCM 240×320 310 65:1 16.7M WLED CPU

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Name: L5F30515P00 TFT LCD Module Epson 20quot LCM 240320 310 651 167M WLED CPU
Brand: Epson
Price: 1 USD

Brand Name : Epson

Model Number : L5F30515P00

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 2.0 inch

Resolution : 240(RGB)×320 , QVGA

Display Mode : Normally Black, Transflective

Active Area : 30.24×40.32 mm

Outline : 34.24×48.92 mm

Contact Now

L5F30515P00 TFT LCD Module Epson 2.0" LCM 240×320 310 65:1 16.7M WLED CPU

L5F30515P00 Information

Panel Size :	2.0 inch
Dot Resolution :	240(RGB)×320 (QVGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	201 PPI
Aspect Ratio :	3:4 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.042×0.126 mm (H×V)
Pixel Pitch :	0.126×0.126 mm (H×V)
Weight :	9.00g
Active Area :	30.24×40.32 mm (H×V)
Bezel Area :	32.24×43.32 mm (H×V)
Outline Dimension :	34.24×48.92 mm (H×V)
Outline Depth :	2.6 mm
Landscape or Portrait :	Portrait type
Touch Panel :	Without
Display Mode :	Normally Black, Transflective
Brightness :	310 cd/m² (Typ.)
Contrast Ratio :	65 : 1 (Typ.) (Transmissive)
Contrast Ratio :	9:1 (Typ.) (Reflective)
Display Color :	16.7M (8-bit)
Viewing Direction :	Symmetry
Sunlight Readable :	Y
